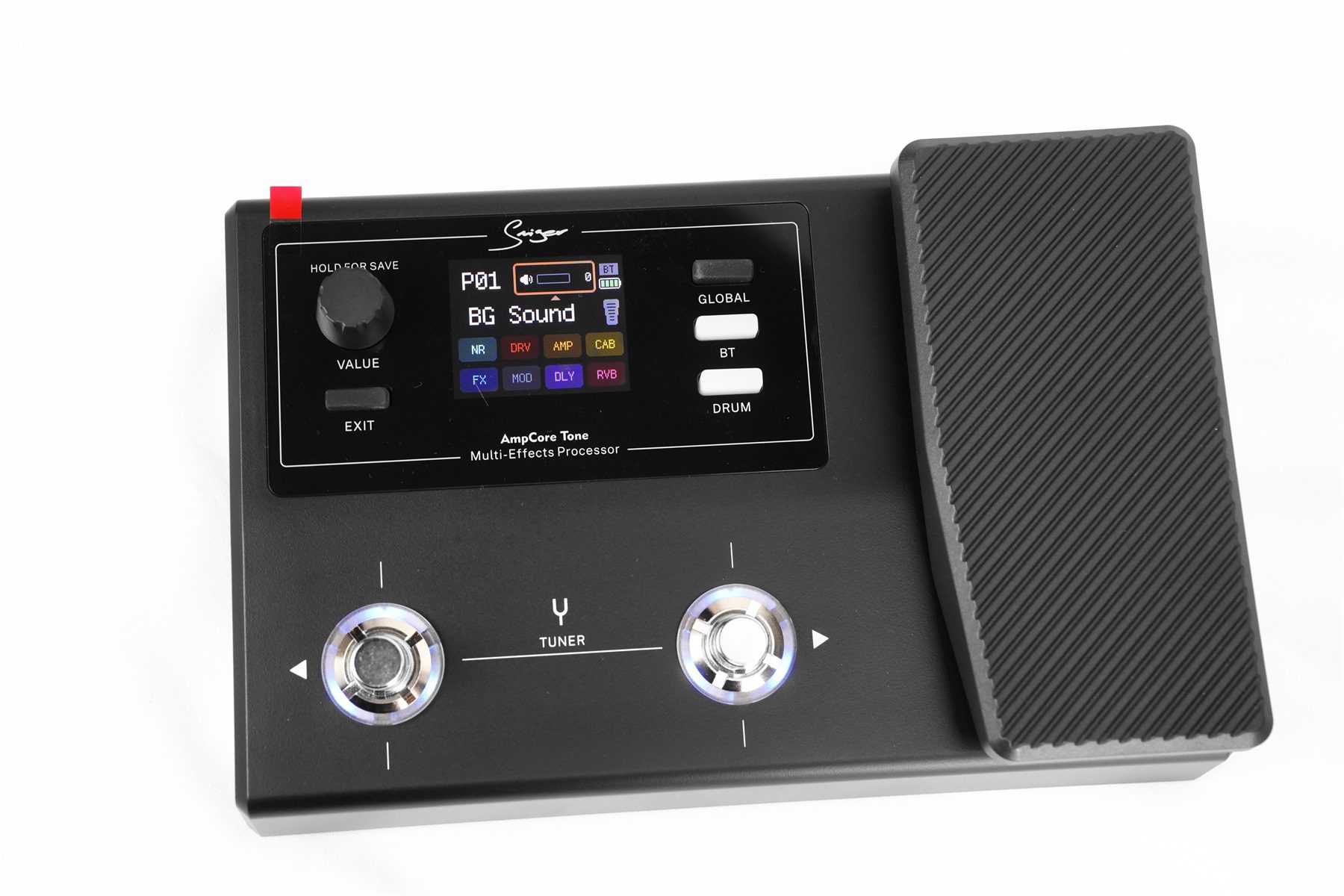

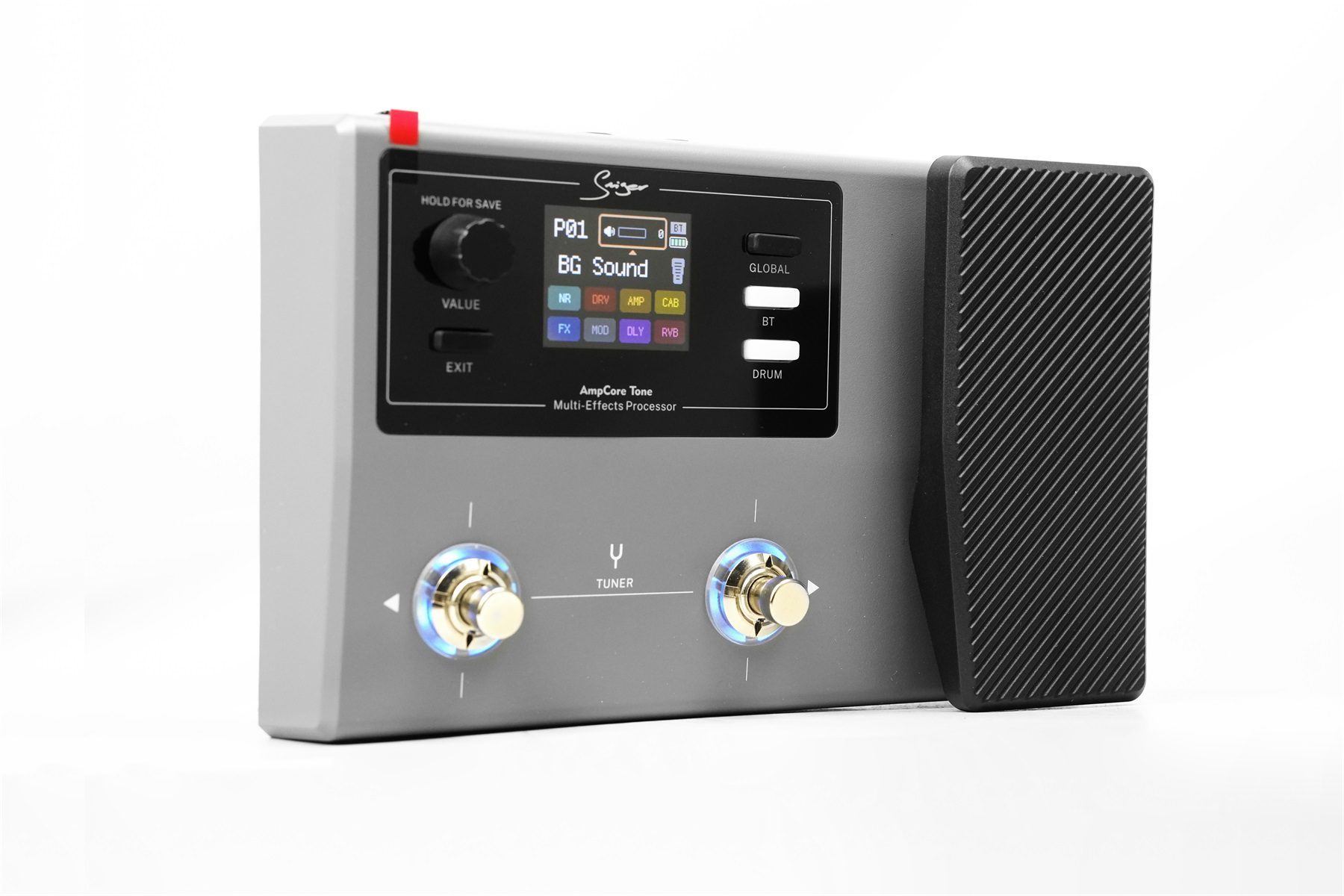

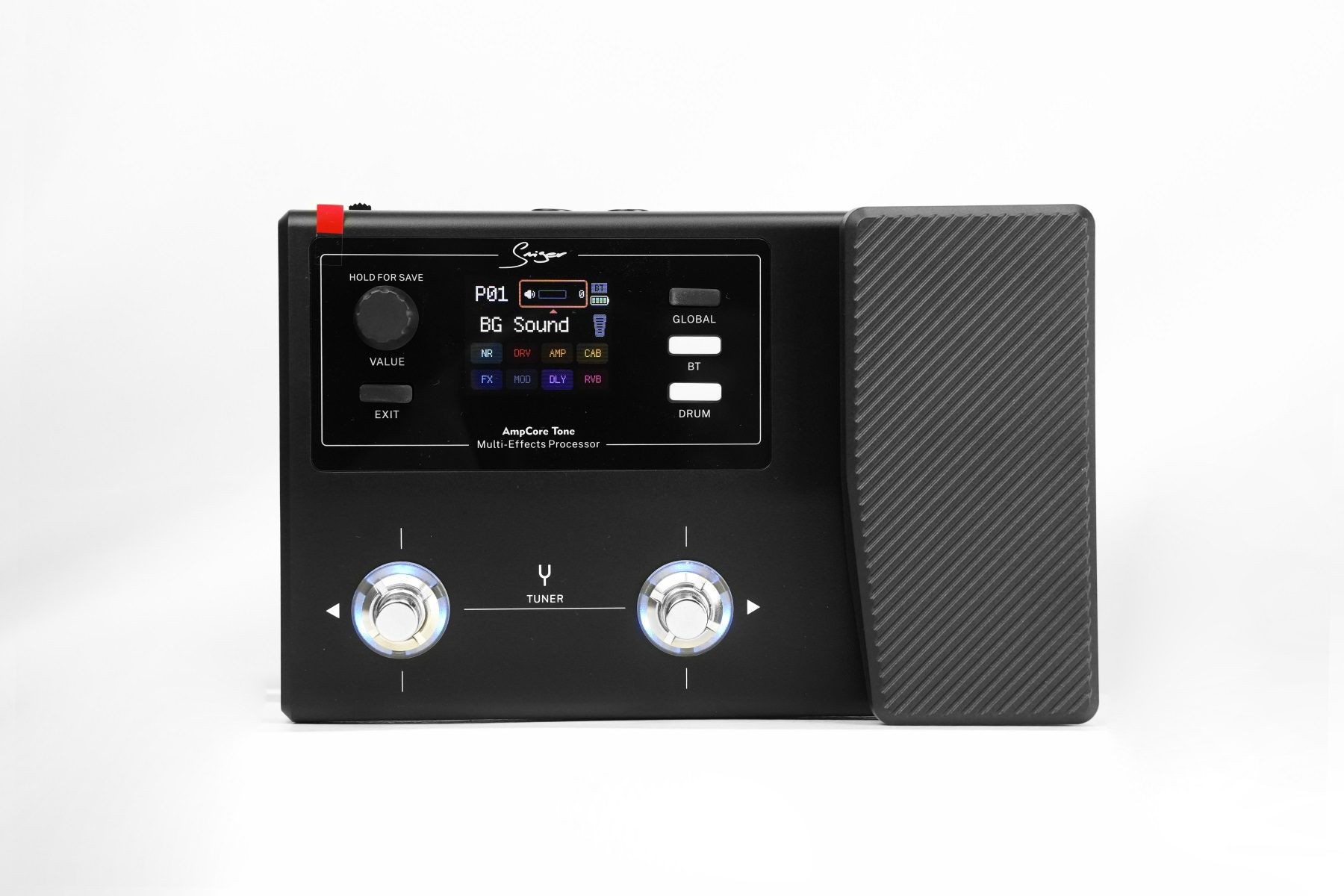

The AmpCore Tone is a cost-effective multi-effect processor exclusively designed by Smiger for guitarists, striking a balance between professional sound quality and portable usage scenarios.
In terms of sound quality, the device is equipped with a 24-bit AD/DA (Analog-to-Digital/Digital-to-Analog) conversion chip, paired with a standard 44.1kHz sampling rate, which accurately reproduces the detailed nuances of guitar tones. A 100dB signal-to-noise ratio effectively suppresses background noise, ensuring clean audio output. Functionally, it supports the simultaneous operation of 8 effect modules, meeting multi-dimensional tone adjustment needs such as distortion, delay, and reverb. It comes with 50 factory presets (F01-F50) covering various music styles, and an additional 50 user presets (P01-P50) are reserved for convenient storage of custom exclusive tones.
The design of connectivity and portability is user-friendly: the analog input uses a 6.35mm TS jack (1MΩ input impedance), compatible with mainstream electric guitars; the output/headphone interface is a 6.35mm TRS stereo unbalanced jack (100Ω output impedance), which can be directly connected to a speaker or headphones for silent practice; it is also equipped with a USB 2.0 Type-C interface, which supports both data transmission and power supply. With dimensions of only 193.5mm × 125mm × 56.5mm and a weight of 454g, the device can be easily packed into a guitar bag.
It features a flexible power supply solution, supporting USB power supply with DC 5V/12V (500mA), and has a built-in 2000mAh 3.7V battery. A single charge provides a battery life of over 7 hours, handling outdoor performances and mobile practice with ease. It is an ideal choice for guitarists’ daily practice and small-scale performances.
| Model | AmpCore Tone |
|---|
| Analog-to-digital/digital-to-analog conversion: 24-bit
Sampling rate: 44.1kHz Signal-to-noise ratio: 100dB Effects: 8 effects, simultaneously available Number of presets: 50 factory presets (F01-F50), 50 user presets (P01-P50) Input: 6.35mm TS jack, input impedance 1 megohm Output/headphones: 6.35mm TRS stereo unbalanced jack, output impedance 100 ohm USB: USB 2.0 Type-C port Size: 193.5mm (length) x 125mm (width) x 56.5mm (height) Weight: 454g USB power requirements: DC5V/12V, 500mA Battery capacity: 2000mAh, 3.7V Battery life: More than 7 hours |
 |
 |
This electric guitar multi-effect processor boasts notable advantages in sound quality and practicality. In terms of sound reproduction, the 24-bit AD/DA (Analog-to-Digital/Digital-to-Analog) conversion paired with a 44.1kHz sampling rate accurately captures the subtle details of the guitar’s original tone, preventing distortion during signal conversion. This makes tones like distortion and clean sound closer to the texture of real-world playing. A high signal-to-noise ratio of 100dB significantly suppresses background noise, ensuring pure, noise-free sound output even during silent practice or recording, thereby enhancing the listening experience.
In terms of functional flexibility, 8 simultaneously usable effect modules break the limitation of single-effect use. Guitarists can layer multiple effects such as distortion, delay, and reverb to easily create exclusive tones with rich layers, making it suitable for different music genres like rock, pop, and jazz. Additionally, the 50 factory presets (F01-F50) can be used directly without adjustment, allowing beginners to get started quickly. The 50 user presets (P01-P50) enable storage of custom tones, eliminating the need for repeated adjustments and saving time. The analog input connection design aligns with practical usage needs, as it is compatible with mainstream electric guitar interfaces. It ensures stable connection and minimal signal transmission loss, guaranteeing consistent tone signals during performance. There is no need to worry about interface mismatches or signal interruptions, and it delivers a reliable user experience whether for daily practice or small-scale performances. |

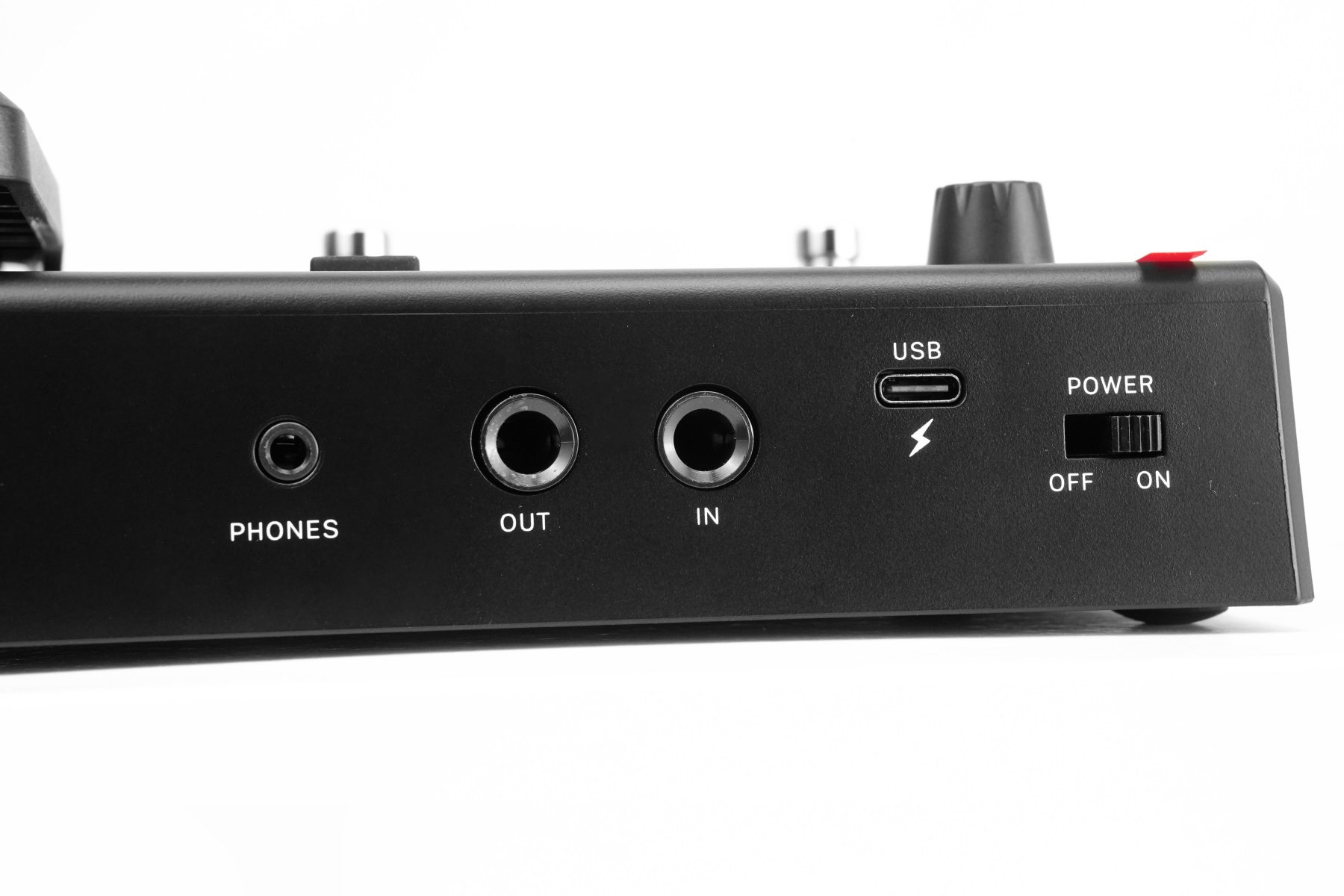

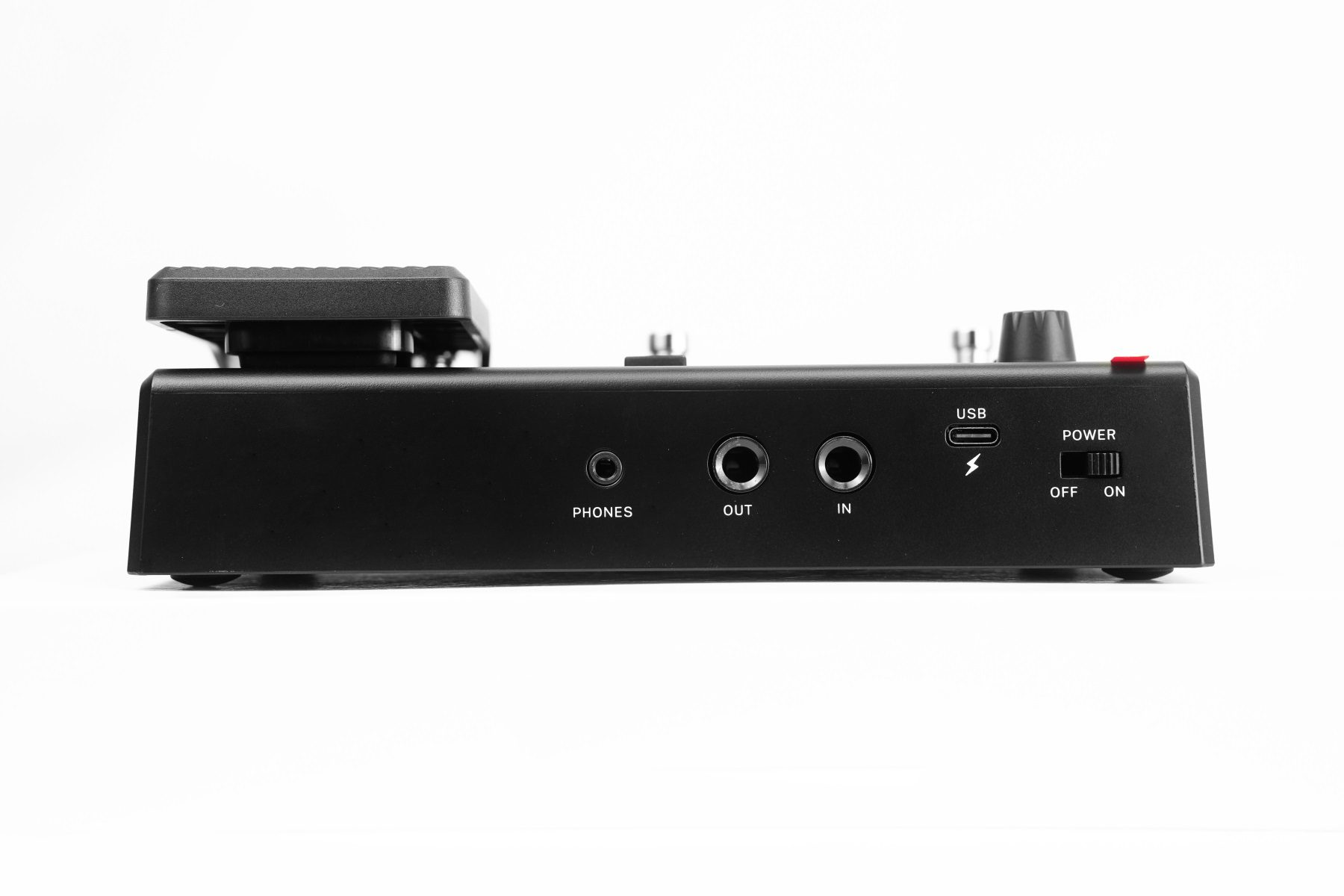

| The connection design of this electric guitar multi-effect processor is developed with practicality and compatibility in mind, bringing multiple conveniences to users. The input end adopts a 6.35mm TS jack, a mainstream interface in the electric guitar field, which allows direct connection to the guitar without an additional adapter, eliminating the hassle of incompatible interfaces. With an input impedance of 1MΩ, it accurately matches the characteristics of guitar pickups, minimizes signal transmission loss, ensures the complete transmission of the original tone, and avoids tone distortion caused by impedance mismatch.
The 6.35mm TRS stereo unbalanced jack at the analog output end accommodates both speaker connection and headphone use: when connected to a speaker, it ensures stereo sound during performances or practice; when plugged into headphones, it enables silent practice without disturbing others. With an output impedance of 100Ω, it is compatible with most home speakers and monitoring headphones, eliminating concerns about device compatibility. At the same time, it reduces volume attenuation and sound quality degradation, ensuring clear and stable output sound. For digital connection, it is equipped with a USB 2.0 Type-C interface. The Type-C interface supports reversible plugging (no need to check orientation), making it more convenient to use. USB 2.0 enables stable transmission, allowing data interaction with computers (such as editing and backing up presets). It can also power the multi-effect processor via USB—when practicing or performing outdoors, only one data cable is needed to handle both power supply and data transmission, reducing the burden of carrying additional accessories and greatly enhancing usability flexibility. |
 |
 |
The connection design of this electric guitar multi-effect processor is developed with practicality and compatibility as core priorities, bringing multiple conveniences to users. The input end adopts a 6.35mm TS jack – a mainstream interface in the electric guitar field – which allows direct connection to the guitar without an additional adapter, eliminating the hassle of interface mismatches. With an input impedance of 1MΩ, it accurately matches the characteristics of guitar pickups, reduces signal transmission loss, ensures the complete delivery of the original tone, and avoids tone distortion caused by impedance mismatch.
The 6.35mm TRS stereo unbalanced jack at the analog output end serves dual purposes of speaker connection and headphone use: when connected to a speaker, it guarantees stereo sound during performances or practice; when paired with headphones, it enables silent practice without disturbing others. Boasting an output impedance of 100Ω, it is compatible with most home speakers and monitoring headphones, eliminating worries about device compatibility. Meanwhile, it reduces volume attenuation and sound quality degradation, ensuring clear and stable sound output. For digital connection, it is equipped with a USB 2.0 Type-C interface. The Type-C interface supports reversible plugging (no need to check orientation), making it more user-friendly. USB 2.0 enables stable transmission, allowing data interaction with computers (such as editing and backing up presets). It can also power the multi-effect processor via USB – when practicing or performing outdoors, only one data cable is required to handle both power supply and data transmission, reducing the burden of carrying extra accessories and greatly enhancing usability flexibility. |
Brand Introduction
The smiger guitar is a brand under Guangzhou Vines Music Co., Ltd. Since its establishment, we have always adhered to the concept of "Creating Joy for everyone" and created excellent musical instruments. We achieve various values through product manufacturing and services, providing customers with high-quality service and better musical instrument products.
Creating Joy for everyone
Music is like a river, flowing slowly without an end, where everything grows. Whether it's a small village or a big river, a place with music can bring happiness. Carry your guitar on your back in bustling places, accompanied by music, and create a happy and beautiful sensory experience in the sunshine.
Smiger is specialized in music instruments production, development, sales One-stop supply manufacturer, professional 15 years export experiences. We supply a wide range of music products to meet ever-changing market demands,customized orders are welcomed. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well and enjoy a good reputation among our customers all over the world.
