Guitar Tuning Pegs: Types, Fit and Replacement Guide

Guitar tuning pegs hold each string at the required tension and let the player make controlled pitch adjustments. They are sometimes called tuners, tuning machines or machine heads. A suitable set should turn smoothly, hold its position and fit the headstock without forcing changes to the wood. The most appropriate design depends on the instrument, string-post layout, mounting dimensions, desired weight and the way the model will be used.

This guide explains the main types of guitar tuning pegs, the differences that matter in practice and the measurements to confirm before replacement or model selection. It is written for distributors, regional sales partners, educators and other organizations comparing guitar specifications across a product range.

What are the main types of guitar tuning pegs?

The three most common groups are open-gear, sealed-gear and locking tuning machines. “Sealed” describes the housing around the gear mechanism. “Locking” describes how the string is secured at the post. These are separate features: a sealed tuner is not automatically a locking tuner, and neither term means that the tuner adjusts pitch electronically.

Open-gear tuning machines

On an open-gear tuner, the gear and worm are visible. The design makes inspection straightforward and is commonly found on classical guitars, vintage-inspired instruments and many bass guitars. Open gears can work reliably when the parts are correctly aligned and maintained. Because the mechanism is exposed, dust and handling residue are easier to see and should be removed carefully rather than covered with excessive lubricant.

Sealed-gear tuning machines

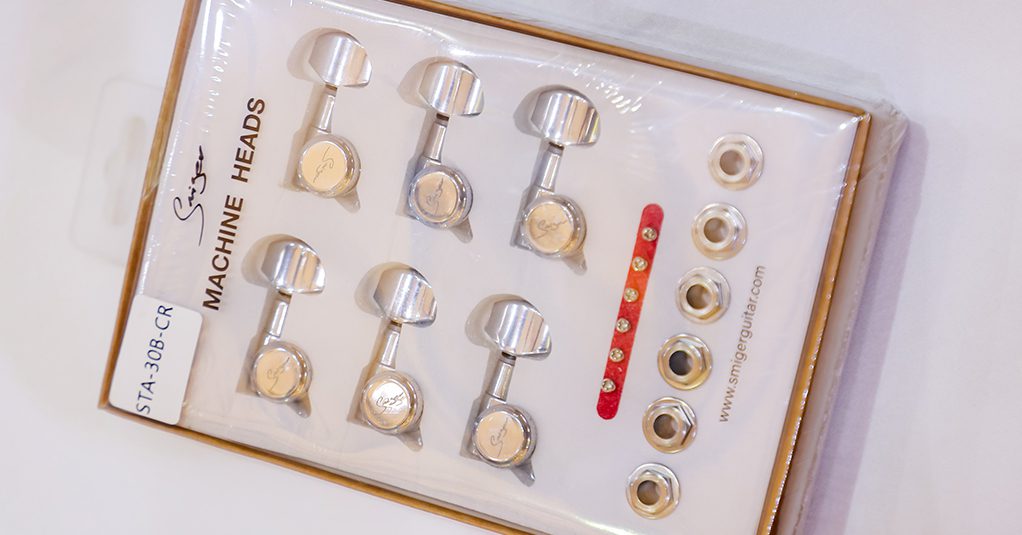

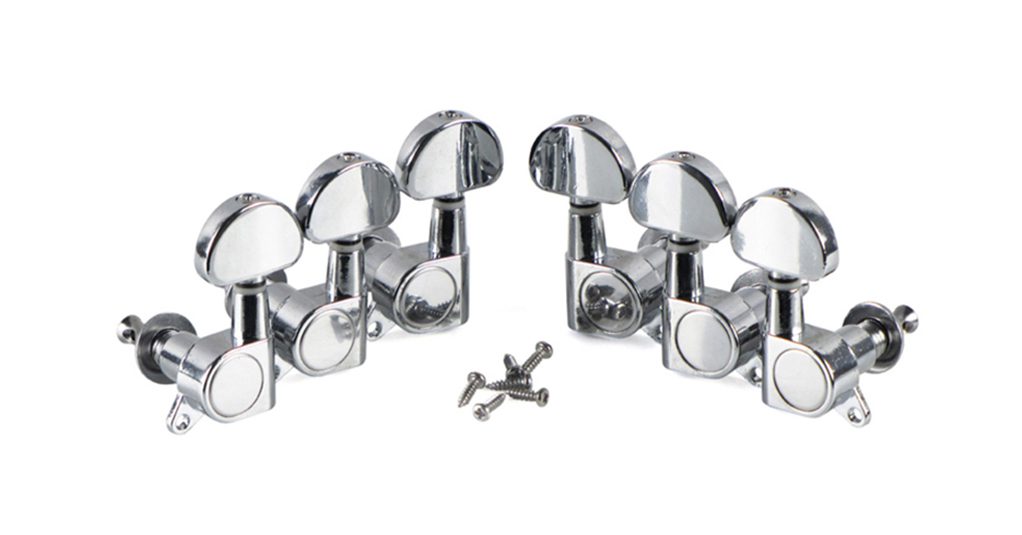

Sealed tuning machines place the gear mechanism inside a metal housing. This limits direct exposure to dust and gives the headstock a clean, consistent appearance. They are widely used on steel-string acoustic and electric guitars. The housing does not by itself guarantee better tuning stability; post fit, gear quality, nut condition, string installation and setup all contribute to how well the instrument stays in tune.

Locking tuning machines

A locking tuner clamps the string at the post, reducing the number of wraps needed around it. This can make string changes faster and can reduce slack caused by loose winding. Locking tuners are useful on instruments that require frequent string changes or use expressive pitch techniques, but they do not correct friction at the nut, an incorrectly set bridge or poorly stretched strings.

Slotted-post and vintage-style tuners

Some vintage-style electric guitars use posts with a slot and a centre hole. The cut end of the string is inserted into the post before winding, producing a tidy installation. Three-on-a-side and six-in-line arrangements can both use vintage-style mechanisms, so the visible arrangement alone is not enough to determine replacement compatibility.

Electric, acoustic and classical guitar tuners: what changes?

There is no universal gear ratio or material that belongs only to one guitar type. The practical differences are usually the post design, headstock thickness, mounting pattern, button clearance and string requirements.

• Electric guitar tuning pegs: commonly use a six-in-line or three-per-side layout. Their dimensions must match the headstock holes, rear fixing screws or locator pins, and the required left- or right-hand orientation.
• Steel-string acoustic guitar tuning pegs: often use three-per-side sealed or open mechanisms. Post height and button clearance should be checked against the headstock angle and neighbouring tuners.

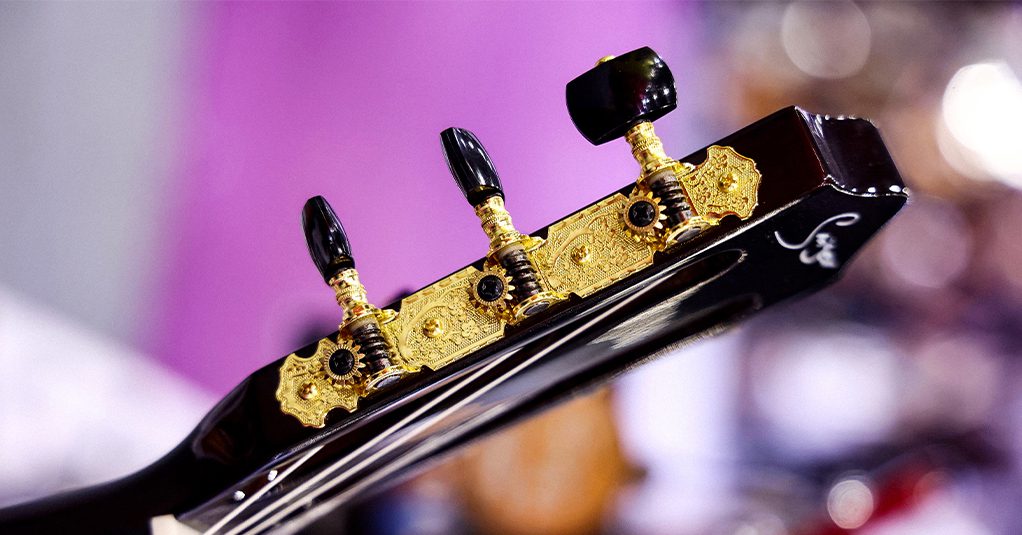

• Classical guitar tuning machines: normally use side-mounted plates and rollers designed for nylon strings and a slotted headstock. They should not be treated as direct substitutes for standard steel-string tuners.
• Bass tuning machines: generally have larger posts and footprints to suit bass strings and headstock construction. Confirm every measurement instead of assuming that a guitar component will fit a bass.

For related string and instrument differences, see our electric bass and acoustic bass comparison. When defining an electric-guitar range, tuning hardware should also be considered alongside the pickup configuration and intended playing context.

How does gear ratio affect tuning?

The gear ratio describes how many turns of the tuner button are required to rotate the string post once. A higher numerical ratio generally allows a smaller pitch change for the same movement of the button. This can make fine adjustment easier, but ratio alone does not define quality. Consistent gear engagement, low unwanted play, a straight string path and stable mounting are equally important.

Do not select a tuner from a nominal ratio without checking the complete specification. Two sets with the same stated ratio can differ in weight, button feel, post dimensions and mounting method. For a product line, a consistent operating feel across the set is more useful than an isolated number.

What should be checked before replacing guitar tuning pegs?

The safest replacement is dimensionally compatible with the existing headstock. Measure first and compare the actual drawing or sample rather than relying only on a product name.

1. Headstock-hole diameter: measure the hole and identify whether the tuner uses a press-fit bushing, threaded bushing or another mounting system.
2. Headstock thickness: confirm that the post and bushing provide suitable engagement without leaving the assembly loose.
3. Post height and diameter: check the string hole or slot position and ensure that the string path remains appropriate.
4. Mounting pattern: record the screw position, locator-pin spacing and body footprint. A visually similar tuner may use different fixing points.
5. Orientation and layout: confirm left, right, six-in-line or three-per-side configuration.
6. Button clearance: make sure adjacent buttons can rotate freely and do not interfere with the headstock edge.
7. Set weight: a substantial change in tuner weight can alter the balance of the instrument, especially on a compact or lightweight model.

If the new mounting pattern differs, drilling may be required. That work should be evaluated carefully because unnecessary or misplaced holes can damage the finish, weaken the mounting area or make a later change more difficult. When the dimensions are uncertain, ask a qualified guitar technician to inspect the instrument.

How to replace guitar tuning pegs

The exact process varies by mounting system, but the following sequence provides a practical reference.

1. Place the guitar on a stable, padded surface and support the neck.
2. Loosen and remove the strings. If the strings will be reused, organise them so that they are not kinked or mixed.
3. Use the correct screwdriver or wrench to remove the rear screws, bushings or nuts. Support the tuner so it does not turn against the finish.
4. Lift the old tuner out without forcing it. If a bushing is tight, use the correct removal method rather than striking the headstock.
5. Clean the exposed area with a soft dry cloth and inspect the holes for damage.
6. Test-fit the new tuner. Check alignment, post height and button clearance before tightening anything.
7. Install the hardware evenly. Tighten it enough to hold the tuner securely, but do not overtighten the bushing or fixing screw.
8. Restring the instrument with neat wraps, bring it gradually to pitch and stretch the strings gently.
9. Check tuning, nut movement and the security of each fixing point after the strings have settled.

Replacing tuners may improve operation when the original units are damaged, excessively loose or unsuitable for the intended setup. It will not solve every tuning problem. Before changing hardware, also check the string installation, nut slots, bridge, tremolo setup and string condition.

How many windings should be on a guitar tuning peg?

There is no single winding count for every guitar. The goal is a secure, orderly wrap with no overlapping coils. Standard non-locking posts usually need multiple clean wraps, while a locking post normally needs fewer. Thicker strings generally require fewer wraps than thin strings. Leave enough string length for a secure installation, guide each wrap downward where appropriate and avoid a large, untidy coil that can settle unpredictably.

After restringing, bring the string to pitch gradually and stretch it gently along its length. If the pitch continues to move, identify whether the string is settling at the post, binding at the nut or moving elsewhere in the system before blaming the tuner.

Maintenance and operating checks

• Remove dust with a soft cloth and keep moisture away from exposed metal parts.
• Do not apply lubricant unless the tuner design and service guidance allow it. Excess product can attract dirt or reach the wood and finish.
• Check loose screws and bushings with the correct tool. Small screws can strip if overtightened.
• Turn the button smoothly instead of forcing a mechanism that feels jammed.
• Investigate uneven resistance, excessive play, slipping or visible damage before the problem affects normal use.

Choosing tuning hardware for a guitar range

For a distributor or catalogue partner, the useful question is not simply whether one tuner type is “better.” The hardware should match the model position, headstock construction, visual language and expected use. A practical evaluation can record the mounting dimensions, gear operation, post alignment, complete-set weight, finish consistency and service pathway. These details make model comparison more reliable and help keep product pages, catalogues and enquiry documents consistent.

SMIGERGUITAR can provide current model specifications and product materials for business evaluation. For information about a listed instrument or its tuning hardware, use the business enquiry form or email info@vinesmusic.com. Please include the model code and market so the relevant information can be checked.

Frequently asked questions

Are tuning pegs and machine heads the same thing?

In common guitar usage, tuning pegs, tuners, tuning machines and machine heads often refer to the same string-tensioning hardware. “Peg” can also describe friction pegs on certain instruments, so dimensions and mechanism type should still be confirmed.

Do locking tuners keep a guitar perfectly in tune?

No. They can reduce slack at the string post and simplify restringing, but tuning also depends on the strings, nut, bridge, tremolo system, installation and setup.

Can electric guitar tuning pegs be used on an acoustic guitar?

Only when the dimensions, orientation, mounting system, post design and string requirements are compatible. The instrument category alone is not enough to confirm fit.

Does a higher gear ratio always mean a better tuner?

No. A higher ratio can support finer adjustment, but smooth engagement, dimensional accuracy, mounting stability, weight and consistency across the set also matter.

When should guitar tuning pegs be replaced?

Replacement may be appropriate when a tuner is damaged, slips under normal string tension, has excessive play that cannot be corrected, or no longer turns reliably. First rule out string-installation, nut and bridge issues.
