Electric Guitar Bridges and Pickups: A Practical Selection Guide
Short answer: an electric-guitar bridge controls how the strings are anchored, adjusted and returned to pitch, while the pickups convert string movement into an electrical signal. Neither component should be selected in isolation. A useful product assessment checks the bridge design, pickup type, scale length, controls, setup and intended playing context as one system.
For music stores, education programs and regional product teams, this matters for a practical reason: two guitars with a similar body outline can feel, sound and behave very differently. A fixed bridge may suit a model that prioritizes straightforward setup and tuning stability. A tremolo bridge adds expressive pitch control, but its nut, saddles, posts and spring balance must work together. Likewise, the label “single-coil” or “humbucker” describes a construction family, not a complete prediction of tone or quality.
This guide explains how to compare electric-guitar bridges and pickups, what to verify during sample inspection, and how to document a model accurately before it enters a product range. It is a technical selection framework, not a claim that one bridge or pickup is universally best.
What is a guitar bridge?
Short answer: A guitar bridge is the hardware assembly that anchors or supports the strings at the body end of the instrument and establishes their speaking-length endpoint. Depending on the design, it may also provide individual saddle adjustment for string height and intonation, transfer string vibration to the body or top, and enable pitch movement through a tremolo mechanism. “Fixed,” “hardtail,” “tremolo,” “vibrato,” “two-point” and “six-screw” describe different parts of this system, so a product sheet should name the actual bridge construction rather than use the terms interchangeably.
Key points for a fast bridge-and-pickup review
- Start with the use case. Define the player level, music setting, expected setup tolerance and service capability.
- Check the complete bridge system. Saddles, mounting points, nut slots, tuners and spring balance all affect tuning return.
- Do not judge pickups by DC resistance alone. Magnet type, coil geometry, inductance, load from pots and capacitors, pickup height and the test rig all influence the result.
- Compare samples under the same conditions. Use the same strings, tuning, amplifier settings, cable, pickup height reference and playing method.
- Record the verified configuration. Model code, bridge type, pickup layout, switching, control values and current images should agree across the sample, specification sheet and product page.
What an electric-guitar bridge actually does
The bridge supports the strings at one end of their speaking length. Its saddles provide the reference point used for scale length and intonation, and many bridge designs also allow individual string-height adjustment. The bridge therefore has a direct role in setup, action, intonation range and the way the player interacts with the instrument.
A common misconception is that bridge type alone determines string tension. With the same scale length, string gauge, pitch and string construction, the theoretical speaking-length tension is essentially the same. Players may still perceive a different response because of break angle, string length behind the saddle, tremolo movement, saddle friction and overall setup. Those are useful observations, but they should not be presented as a single universal rule.
Fixed or hardtail bridge
A fixed bridge has no player-operated pitch movement. Depending on the design, the strings may anchor through the body or at the bridge. Its advantages are a simple operating concept, fewer moving parts and a setup that is generally easier to reproduce. It is a strong option for education fleets, straightforward stage instruments and product ranges where consistent maintenance is important.
Inspection should confirm that every saddle has usable height and intonation travel, that adjustment screws do not protrude excessively into the player’s hand, and that the string path is centered over the pickup pole area and fingerboard. “Fixed” does not automatically mean well set up; the mounting position and saddle range still need to be correct.

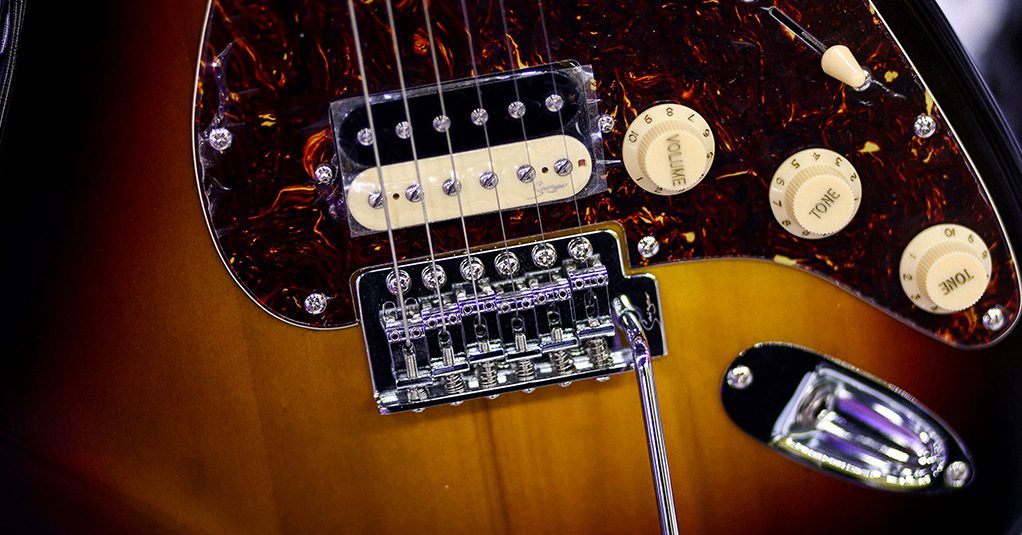

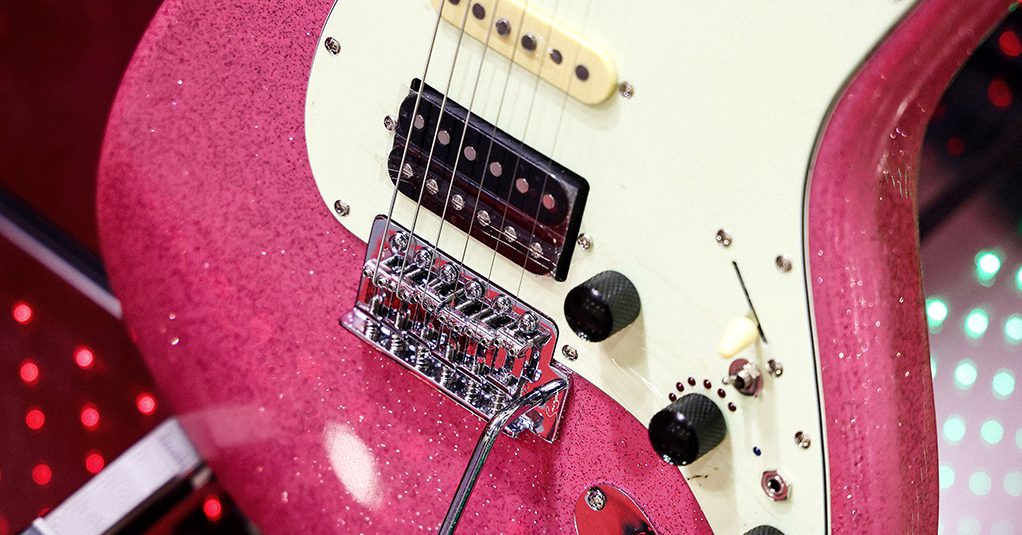

Vintage-style six-screw tremolo
This bridge pivots around six mounting screws and is balanced by springs in the rear cavity. It can be set against the body for downward movement only or floated for movement in both directions. The design offers familiar response and appearance, but the final behavior depends on accurate screw alignment, a clean nut path, suitable string trees, spring balance and careful string installation.
Two-point tremolo
A two-point bridge pivots on two posts. It can provide smooth movement and convenient action adjustment when the posts, knife edges and body inserts are correctly aligned. During sample review, check for lateral play, uneven post height, rough movement and a bridge plate that does not return to its neutral position after controlled use.
Locking tremolo
A double-locking system clamps the strings at the bridge and nut, with fine tuners used for small pitch corrections after locking. It supports wide pitch movement, but string changes and setup require more preparation. The cavity route, neck angle, spring balance, locking surfaces and fine-tuner travel should all be inspected. It is best assigned to a model whose users and service channel can support the additional setup steps.
Tune-o-matic and stop-tailpiece combinations
This arrangement separates the intonation bridge from the string anchor. It is commonly paired with a neck angle and a flatter fingerboard radius than many bolt-on designs, although specifications vary. Review saddle orientation, available intonation travel, post stability, bridge radius and the break angle over the saddles. Excessive tailpiece angle is not a quality target by itself and can add unnecessary contact or string stress.

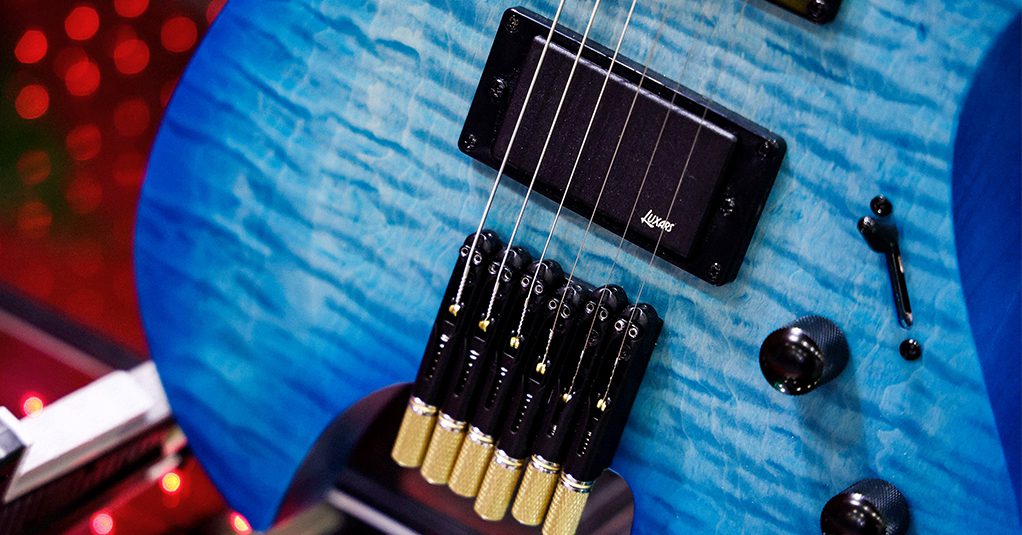

Headless bridge systems
On a headless instrument, tuning hardware is usually integrated into the bridge while the strings are clamped or anchored at the head end. Some systems require special strings; others accept standard strings. A headless bridge should be evaluated for tuner travel, access, gear smoothness, string compatibility and replacement-part clarity. It should not be described simply as a “string-through-body” bridge unless that is true for the specific model.
Bridge comparison for product planning
| Bridge family | Primary benefit | Inspection focus | Typical range role |
|---|---|---|---|
| Fixed / hardtail | Simple setup and stable reference point | Saddle travel, mounting position, string alignment | Entry, education, recording and stage models |
| Six-screw tremolo | Familiar feel and expressive pitch movement | Screw alignment, nut friction, spring balance | Traditional S-style configurations |
| Two-point tremolo | Smooth pivoting and adjustable posts | Knife edges, inserts, neutral return | Contemporary general-purpose models |
| Double-locking tremolo | Large pitch range with locked strings | Locking surfaces, fine tuners, setup access | Performance-focused models |
| Tune-o-matic + stop tailpiece | Separate intonation and anchoring functions | Radius, post stability, break angle | Single-cut and set-neck style models |
| Headless bridge | Bridge-mounted tuning and compact balance | Tuner travel, string compatibility, parts support | Modern compact and travel-oriented models |
Electric guitar pickup types explained
The main electric guitar pickup types are traditional single-coils, humbuckers, P-90-style single-coils, compact dual-coil designs and active pickups. Those family names describe construction, but they do not guarantee a fixed output or tone. Buyers should also verify magnet and coil design, pickup position, height, switching, control values, noise behavior and the conditions used for comparison.
A magnetic pickup senses the movement of ferromagnetic strings and produces a small electrical signal. The result depends on more than the visible cover or coil count. Coil dimensions, winding pattern, magnet material and strength, steel parts, pole geometry, pickup height, pot values, capacitor values and cable capacitance can all change the measured and perceived response.

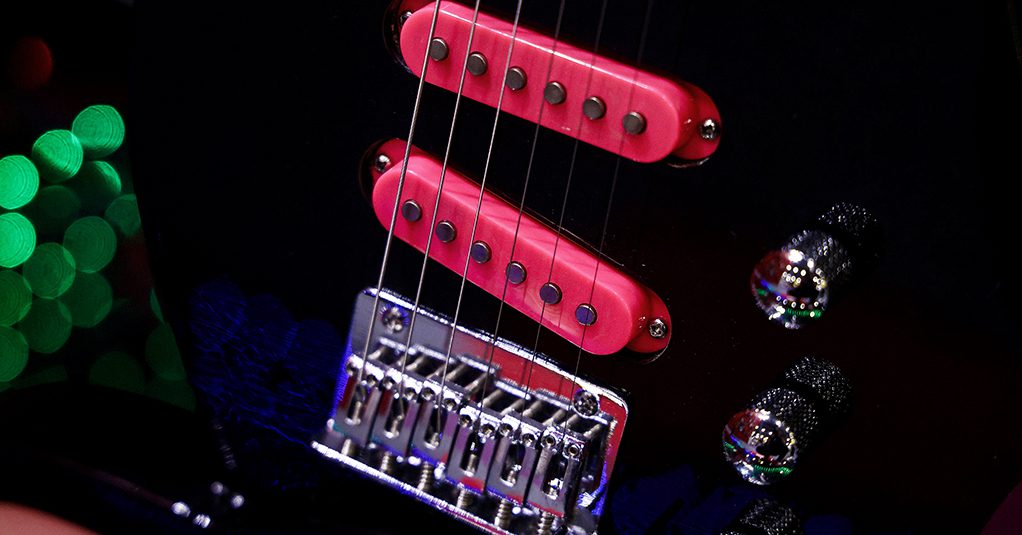

Traditional single-coil pickups
Single-coils are often selected for clear attack and strong note separation. Because a conventional single coil does not cancel common electromagnetic hum, the test environment matters. Compare positions with the same amplifier gain and orientation, and distinguish normal environmental noise from wiring, grounding or shielding faults. Noise should never be summarized with an invented percentage; it depends heavily on the room, electrical supply and signal chain.

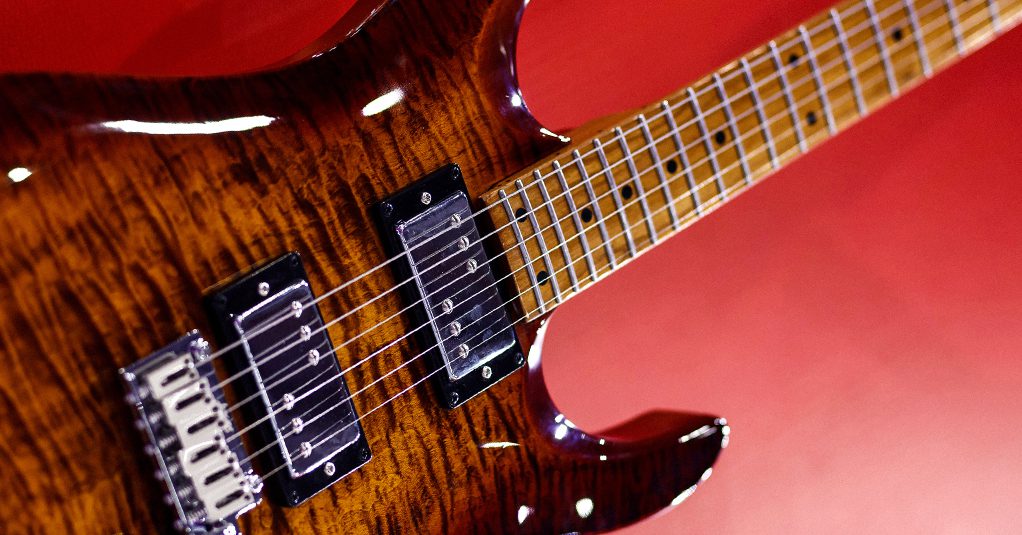

Humbuckers
A humbucker uses two coils arranged to reduce common-mode hum. Many designs produce a fuller midrange or higher output than a traditional single coil, but there is wide variation. A low-output humbucker and a high-output ceramic humbucker should not be treated as the same product. Check coil balance, switching options, mounting stability and output balance between neck and bridge positions.
P-90 pickups
A P-90 is a single-coil design with a wider, shorter coil than many narrow single-coils. It is often chosen for a broad midrange and immediate attack, but it can retain the hum behavior of a single coil. Confirm the actual construction and mounting format—soapbar, dog-ear or another housing—rather than relying only on appearance.
Mini humbuckers and compact dual-coil designs
A smaller dual-coil footprint can change coil geometry and magnetic aperture, often producing a different balance of clarity, output and midrange compared with a full-size humbucker. “Mini” is not a universal specification. Document the dimensions, mounting route and replacement compatibility for the specific model.
Active pickups
Active systems use powered electronics and commonly require a 9-volt battery, although other voltages and rechargeable systems exist. Their benefits may include controlled output, low output impedance and predictable cable loading. Inspection must cover battery access, connector security, current draw information, switching noise and the instrument’s behavior as the battery approaches replacement level.
Gold-foil-style pickups
“Gold foil” describes a broad visual and historical family rather than one standardized internal design. Modern versions may use different magnets, coils and housings. When this look appears in a range, verify the actual construction and measured behavior instead of assigning a single guaranteed tone description to every version.
| Pickup family | Construction point | Practical evaluation focus | Information to verify |
|---|---|---|---|
| Traditional single-coil | One coil in the conventional format | Note separation, environmental hum and position balance | Magnet/coil specification, pole arrangement, height and control values |
| Humbucker | Two coils arranged to reduce common-mode hum | Output balance, clarity under gain and switching | Coil arrangement, split/series/parallel functions, mounting and controls |
| P-90 style | Wider single-coil geometry in several mounting formats | Attack description in controlled tests and normal single-coil noise | Construction, mounting format, dimensions and height |
| Compact dual-coil | Two coils in a smaller footprint | Output and response in the same test rig | Dimensions, route compatibility, mounting and replacement data |
| Active pickup | Pickup and/or onboard electronics use a power supply | Battery access, switching noise, output consistency and service | Supply, battery compartment, controls and current documents |
Terms such as “Alnico,” “ceramic,” “high output” and “noiseless” can help narrow a comparison, but none describes the whole pickup. Magnet grade and geometry, coil dimensions and winding, steel parts, control values, pickup height and the amplifier/cable chain all contribute to the measured and perceived response. Treat these terms as specification fields to verify, not as standalone quality rankings.
For a layout-focused comparison, see the HSS, SSS and HH pickup configuration guide.
Why bridge and pickup should be evaluated as one configuration
The bridge affects setup stability and the mechanical boundary of the vibrating string. The pickup senses the resulting movement at a specific position along that string. However, it is misleading to say that a particular bridge automatically creates a particular pickup tone. The final result also includes scale length, string construction, pickup placement, electronics, neck relief, action, fret condition, playing method and amplification.
For range planning, compare complete configurations rather than isolated component names. An HSS guitar with a two-point tremolo addresses different switching and service expectations from a two-humbucker fixed-bridge model. Both may suit broad music applications, but they should have distinct model identities, accurate specifications and a clear reason for inclusion.
A repeatable sample-inspection method
A useful inspection does not require exaggerated claims or subjective scoring presented as fact. It requires controlled comparisons and clear records. The following sequence can be applied during sample review or shipment inspection.
1. Confirm model identity before testing
- Match the model code, finish, scale length and pickup configuration to the current specification sheet.
- Confirm the bridge family, switching layout, control count and any coil-split or series/parallel functions.
- Check that website images, packaging marks and the physical sample describe the same configuration.
2. Establish a setup baseline
Record string gauge and tuning, tune the instrument, check neck relief, action and intonation, and verify that the strings are seated correctly. A bridge cannot be judged fairly when the nut slots bind, strings are poorly installed or the instrument is far outside a playable setup range.
3. Test bridge function
- Check saddle height and intonation travel without forcing screws to their limits.
- Use a repeatable sequence of moderate bends and tremolo movement, then measure return to pitch with the same tuner.
- Listen for mechanical rattles and verify that springs, posts, saddles and adjustment screws remain secure.
- Inspect player contact points for sharp saddle screws or obstructed adjustment access.
4. Test pickup and control behavior
- Use a clean reference setting first, followed by the intended gain range.
- Compare string-to-string balance and neck-to-bridge level before changing pickup height.
- Operate every selector position and control through its full travel; listen for dropouts, intermittent contacts and excessive switching noise.
- Check hum in more than one orientation and location before identifying a wiring problem.
- For active electronics, verify the battery compartment and output behavior with a known battery.
5. Document the result
Save the test conditions, setup values, observed behavior and required corrections. If a specification changes, update the model page, catalogue information and internal selection notes together. This reduces mismatches between the physical instrument and the information used by stores, educators and product teams.
Common evaluation mistakes
Calling one material or design “best”
Bridge metals and construction methods influence mass, wear, manufacturing consistency and mechanical behavior, but a material name alone does not prove better tone. State the verified material and design; avoid unsupported rankings.
Using pickup resistance as a quality score
DC resistance is useful for continuity checks and comparing closely related designs under the same conditions. It is not a standalone output, frequency-response or quality measurement. A complete specification needs more context.
Adjusting the saddle in the wrong direction
If the fretted 12th-fret note is sharp relative to the harmonic, increase the speaking length by moving the saddle away from the neck. If the fretted note is flat, shorten the speaking length by moving the saddle toward the neck. Retune after every change and recheck with normal fretting pressure.
Drilling or routing without a model drawing
Bridge and pickup installation may require accurate jigs, centerline references, depth control and finish protection. A finished instrument should not be drilled from generic instructions. Confirm the model drawing, hardware dimensions and service capability first.
Using genre labels as the only decision
Pickup families are often associated with particular styles, but player technique, amplifier and arrangement can be more important than the label. Use genre as one requirement among output, noise behavior, switching, serviceability and price position.
FAQ: electric-guitar bridges and pickups
Is a fixed bridge always better for tuning stability?
A fixed bridge removes the movement of a tremolo system, which simplifies setup, but tuning stability still depends on nut slots, tuners, string installation, saddles and neck condition. It is often easier to maintain, not automatically perfect.
What makes a tremolo bridge return to pitch?
Consistent pivot points, balanced springs, low-friction string paths, correct string installation and a stable setup all matter. The bridge name alone cannot guarantee the result.
Are humbuckers always louder than single-coils?
No. Many humbuckers have higher output than traditional single-coils, but designs vary widely. Compare measured level and perceived balance on the same test rig.
Does a higher DC resistance mean a better pickup?
No. Resistance changes with wire gauge, length and temperature and does not describe the entire response. It should be recorded with the pickup design and test conditions, not used as a quality ranking.
How should pickup height be adjusted?
Begin with the model’s reference setting, fret the highest note, verify string clearance, then make small changes while comparing string balance and output. Avoid placing magnetic pickups so close that they interfere with string movement.
What information should be confirmed before adding a model to a range?
Confirm model code, scale length, bridge type, pickup construction and layout, switching, control values, string gauge, current finish images, setup tolerance, included accessories and the correct support contact. A physical sample and the current document set should agree.
Are noiseless guitar pickups the same as standard humbuckers?
Not necessarily. “Noiseless” is used for several designs, including stacked or otherwise hum-cancelling constructions that may fit a single-coil-sized route. A full-size humbucker also uses two coils to reduce common-mode hum, but size, coil geometry, wiring and response can differ. Verify the actual construction, dimensions, wiring and test conditions.
Conclusion
The most reliable bridge-and-pickup decision begins with the intended user and ends with a verified model record. Fixed, tremolo, locking and headless systems each solve different mechanical needs. Single-coil, humbucker, P-90, active and other pickup families each require accurate construction and test context. Evaluating them together produces a more useful product range than selecting components from reputation or genre labels alone.
